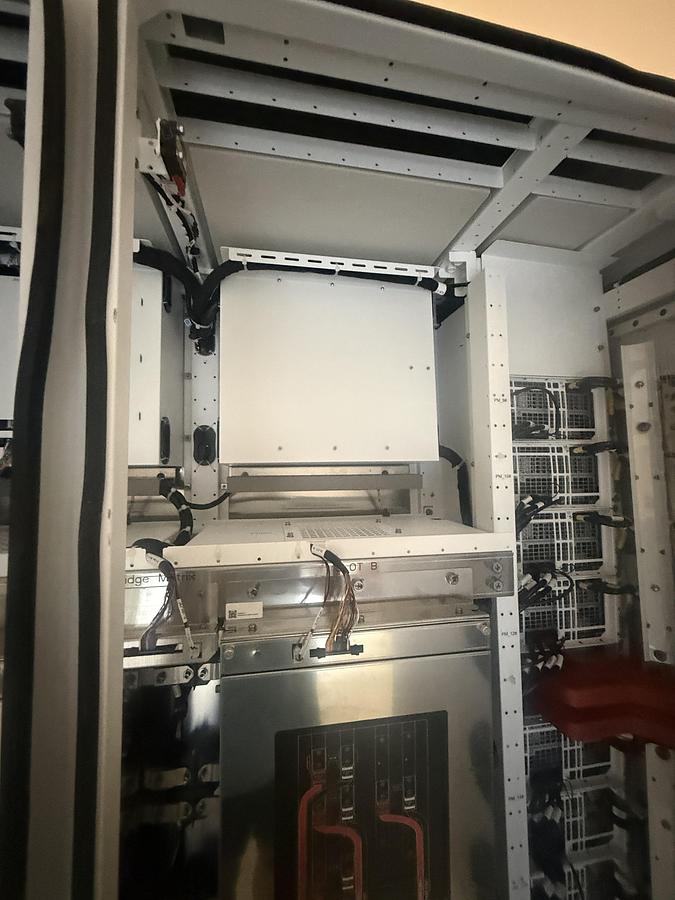

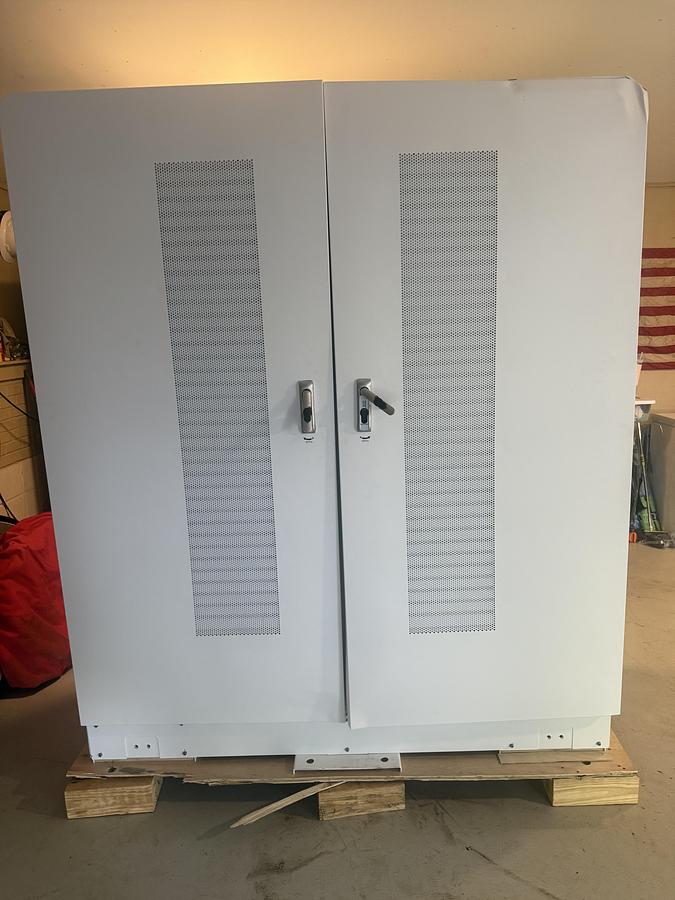

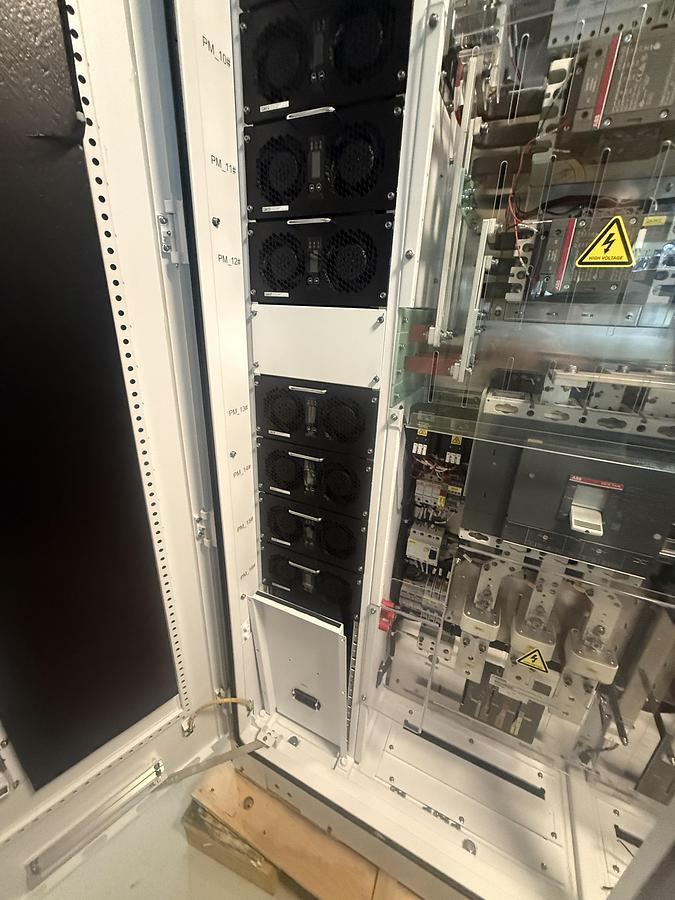

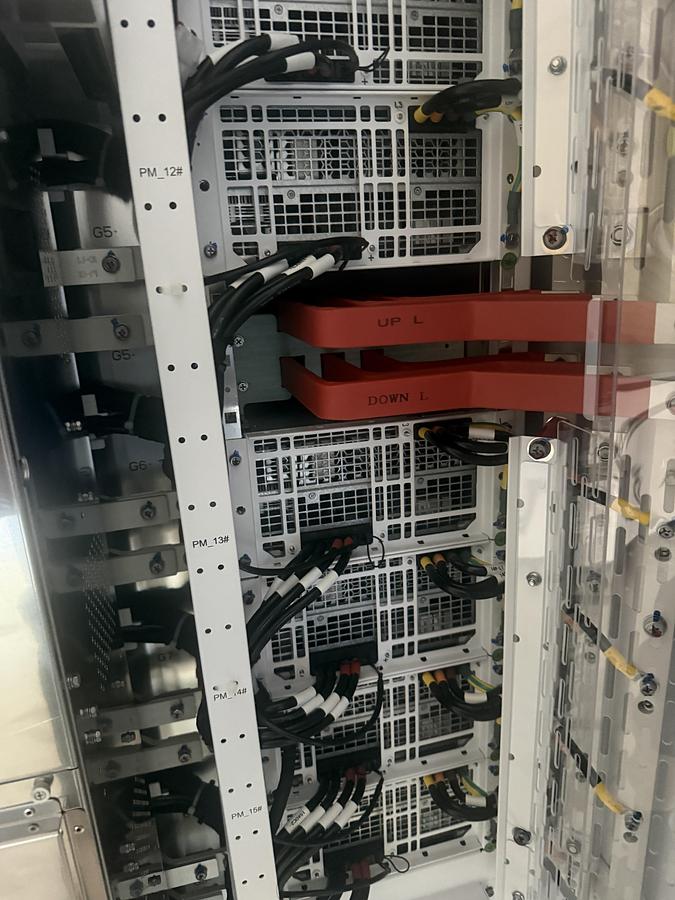

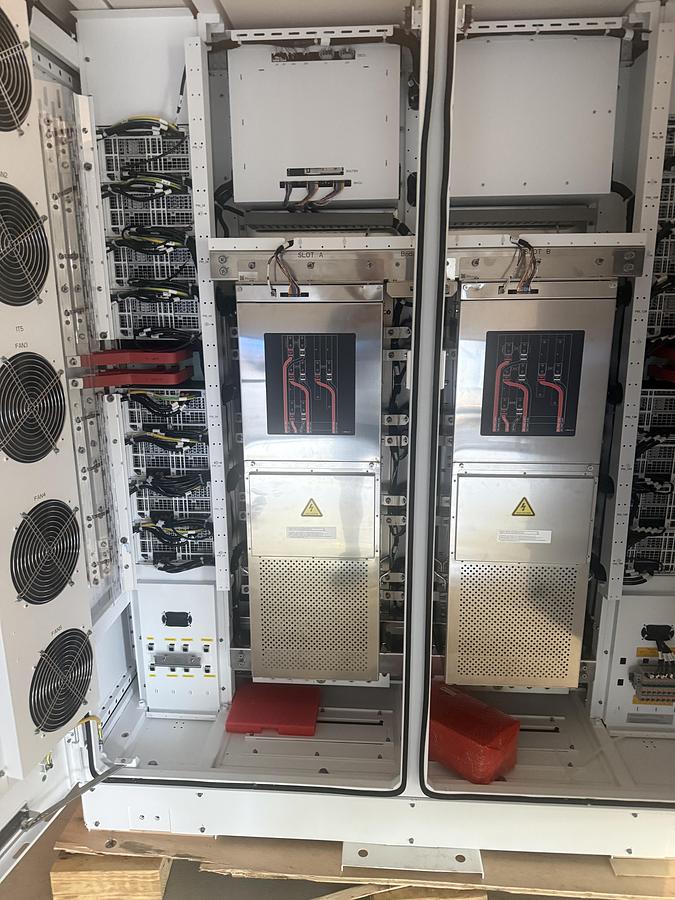

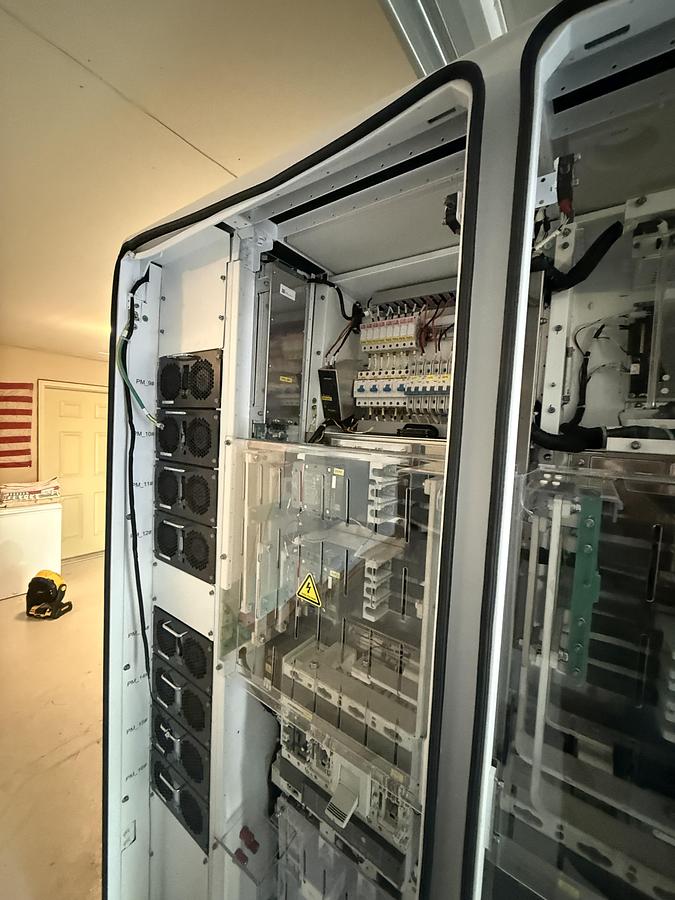

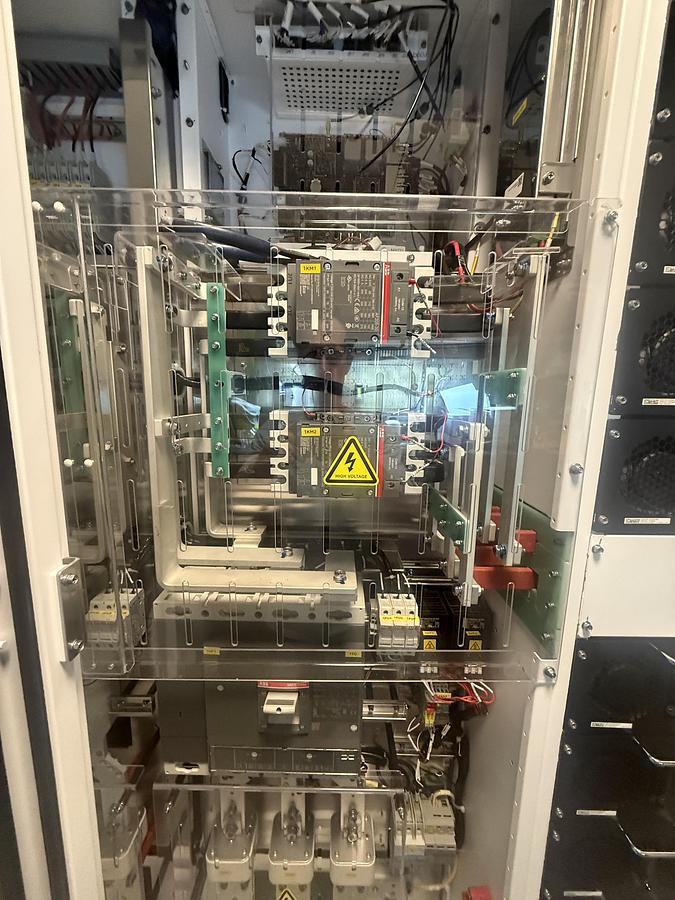

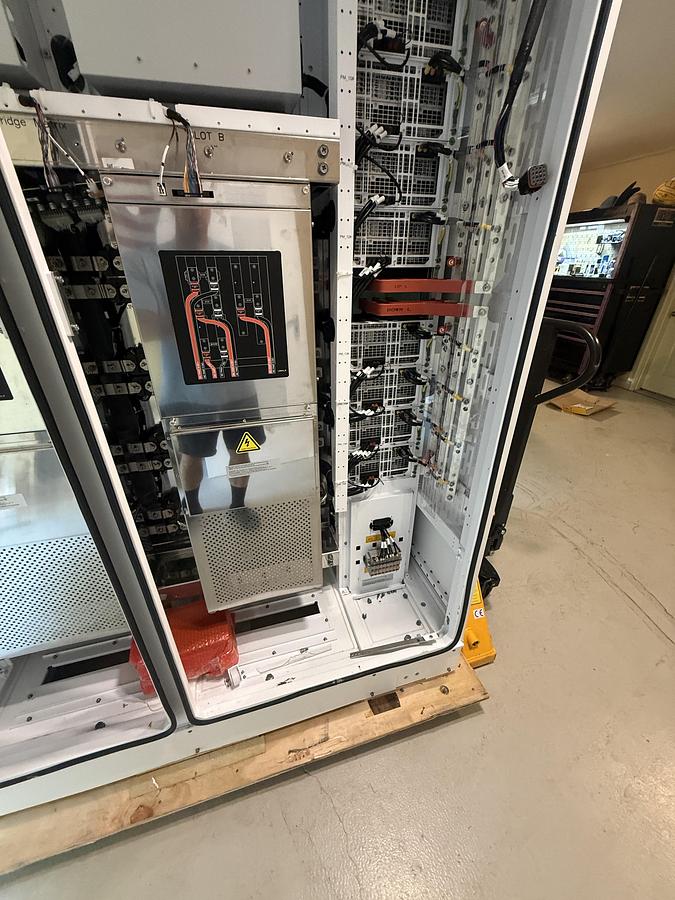

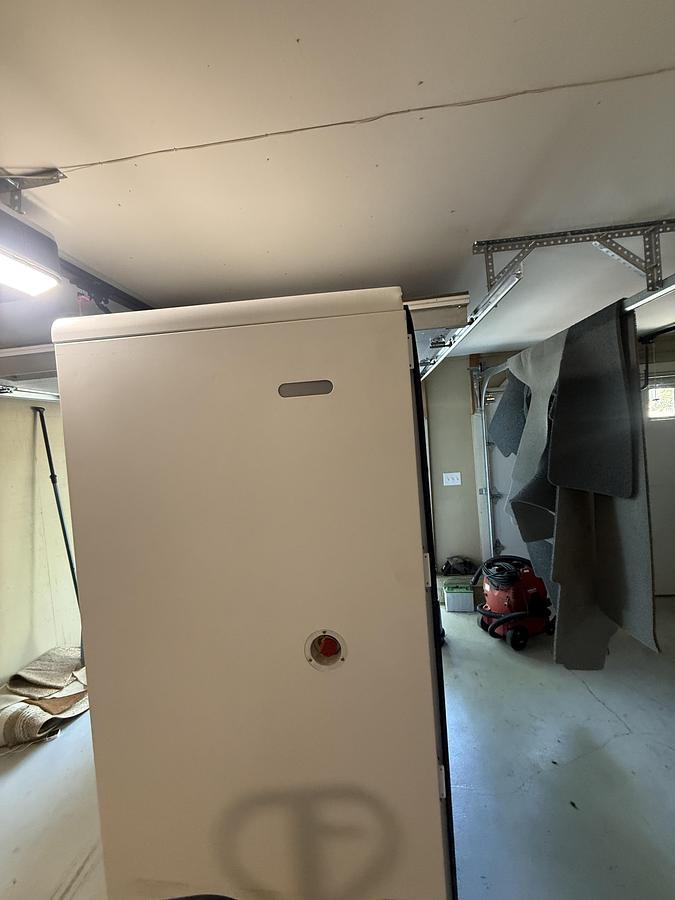

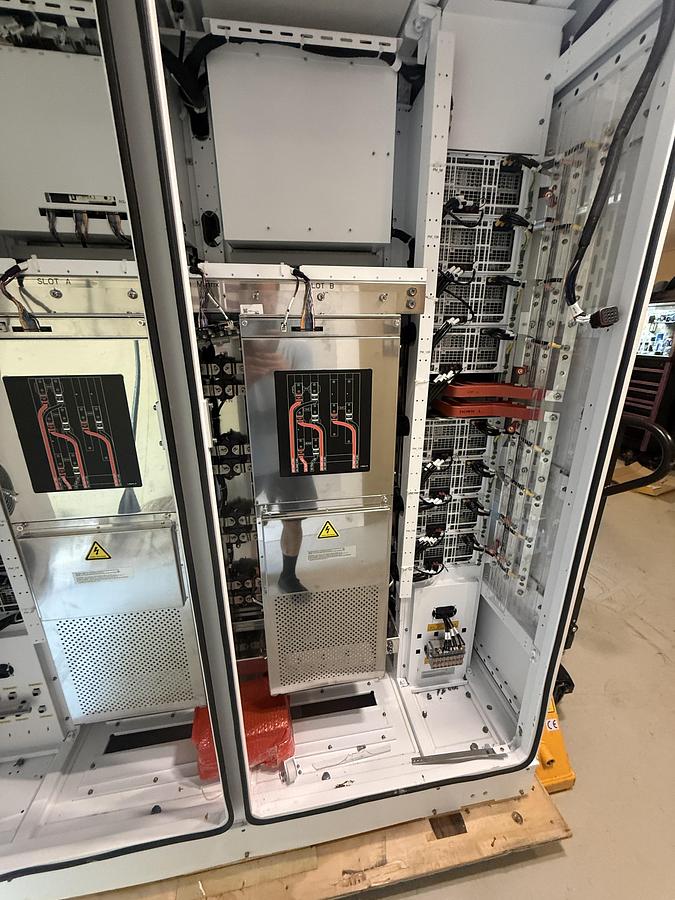

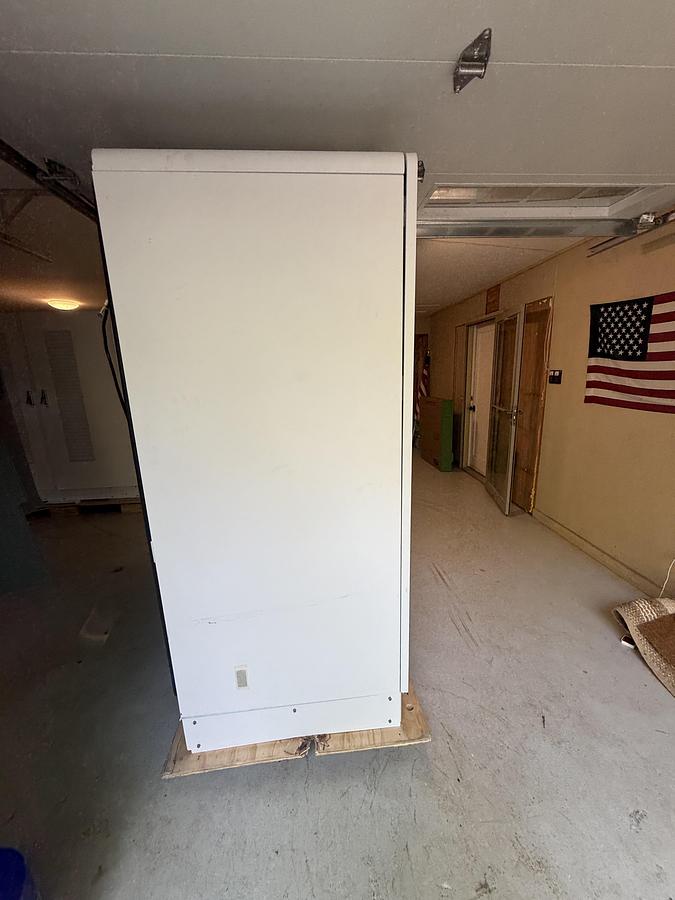

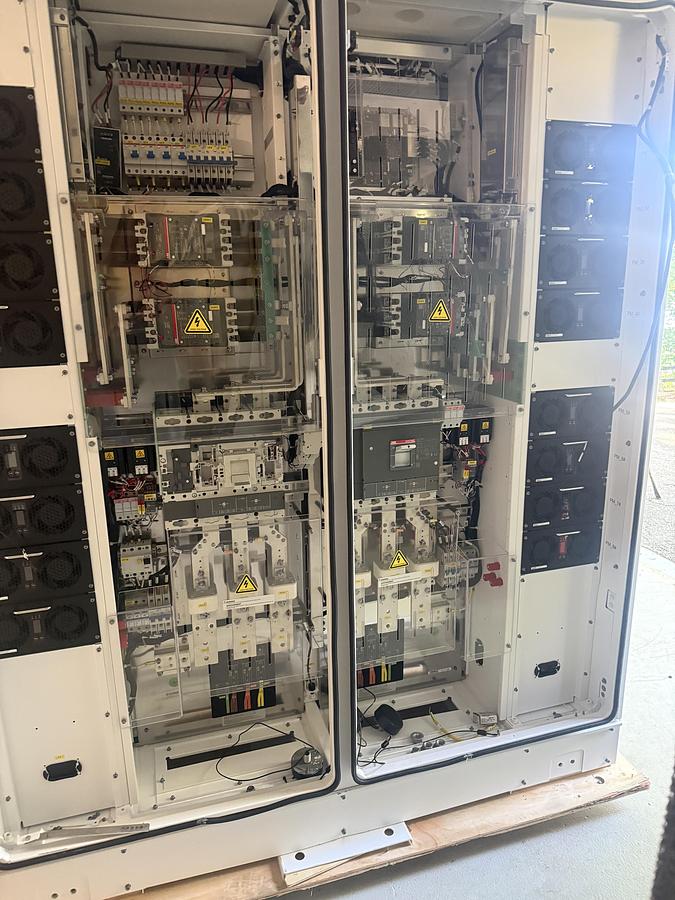

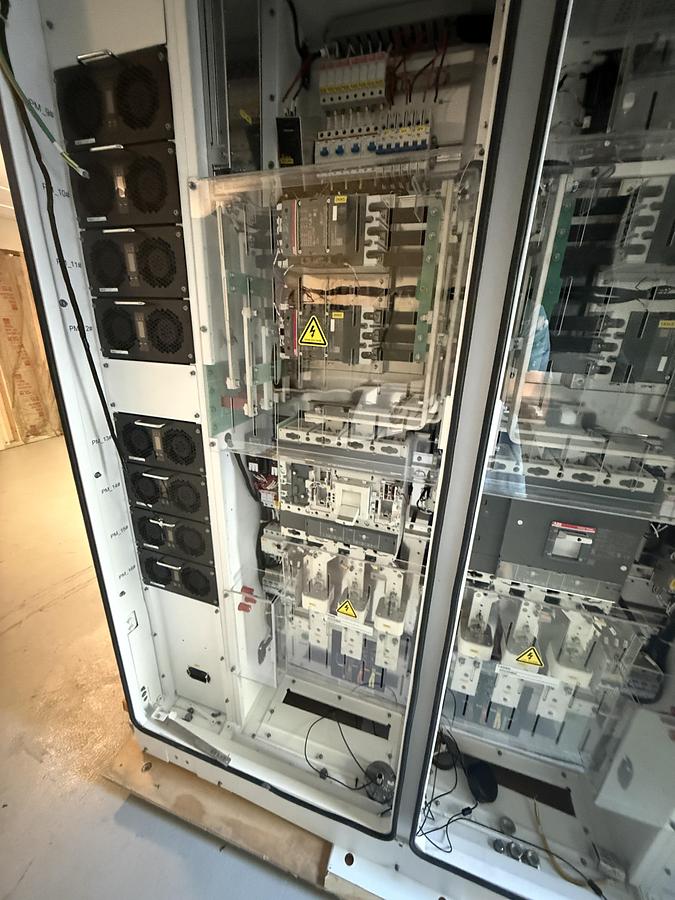

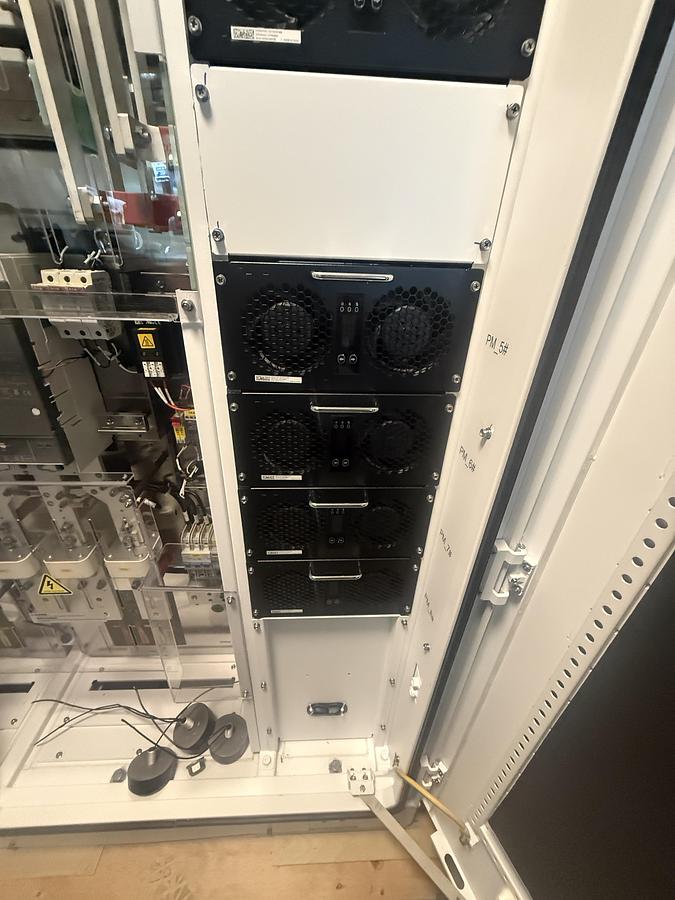

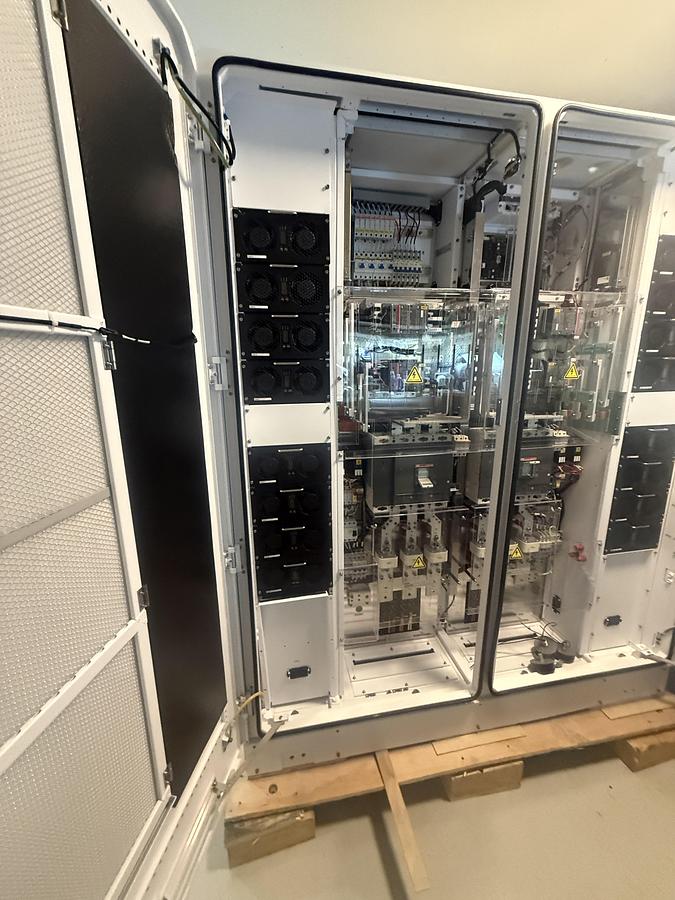

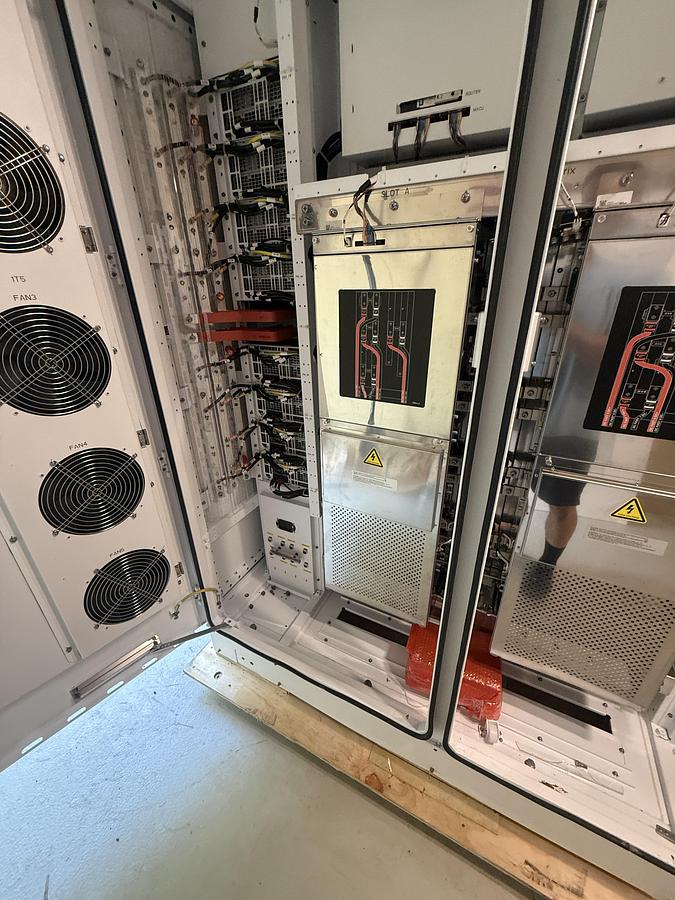

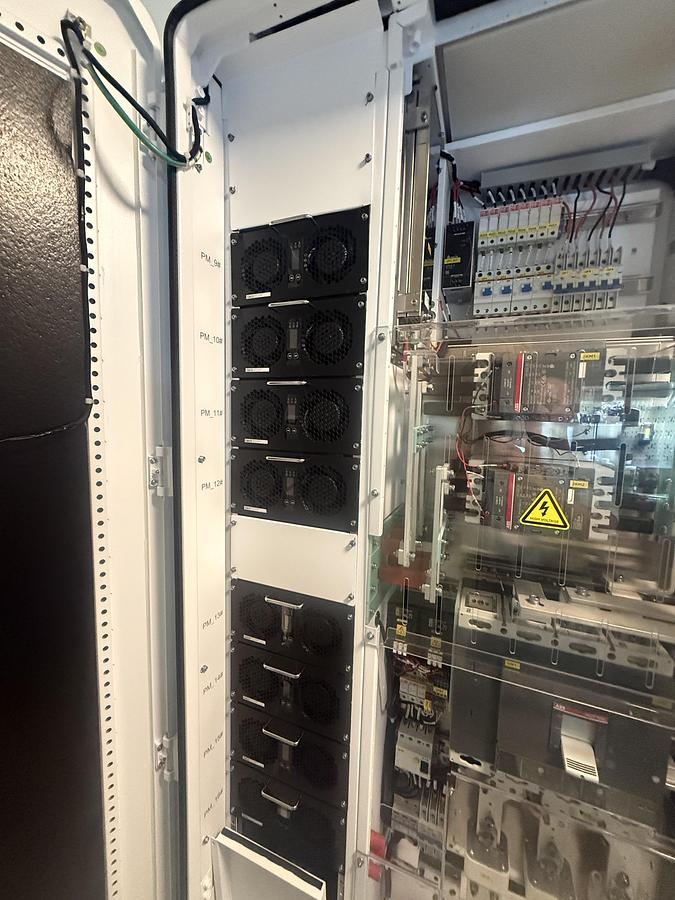

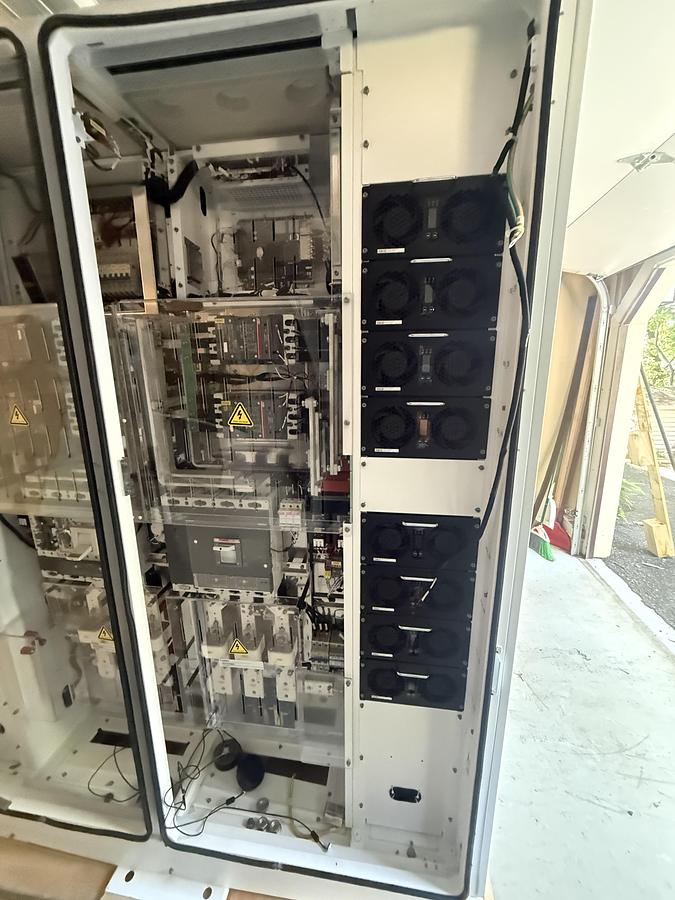

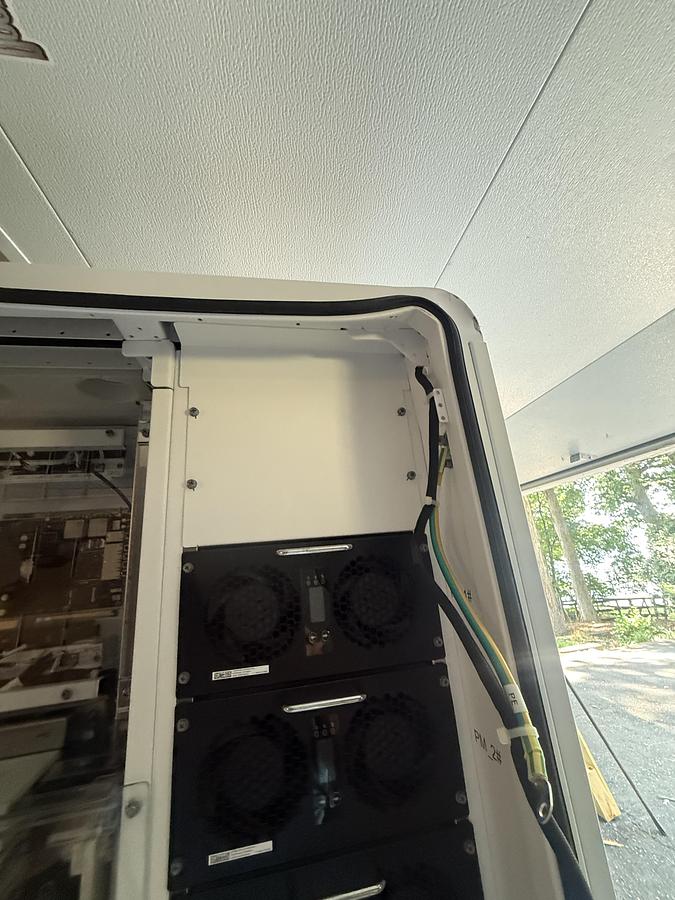

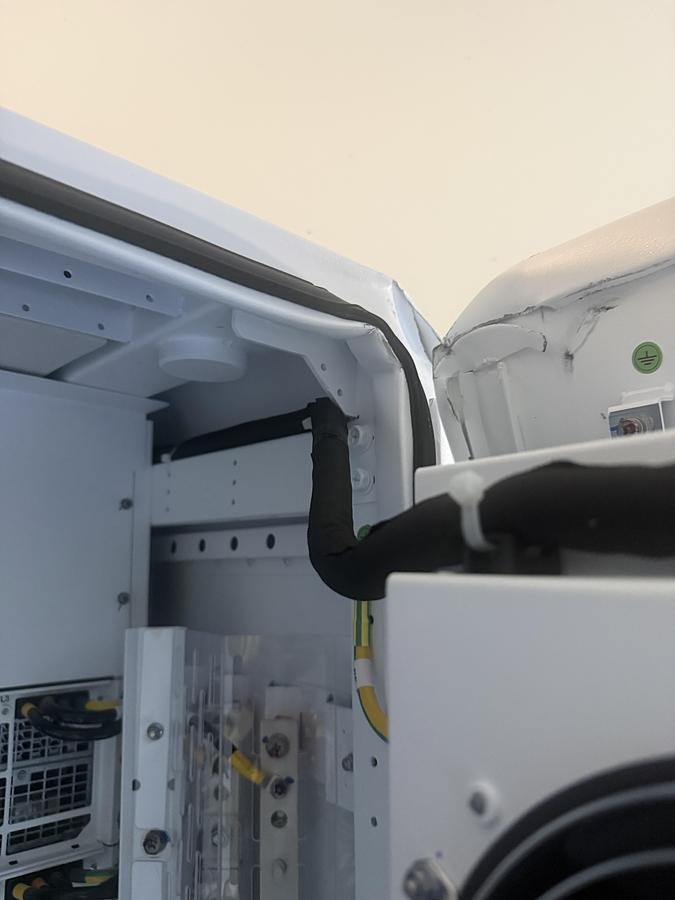

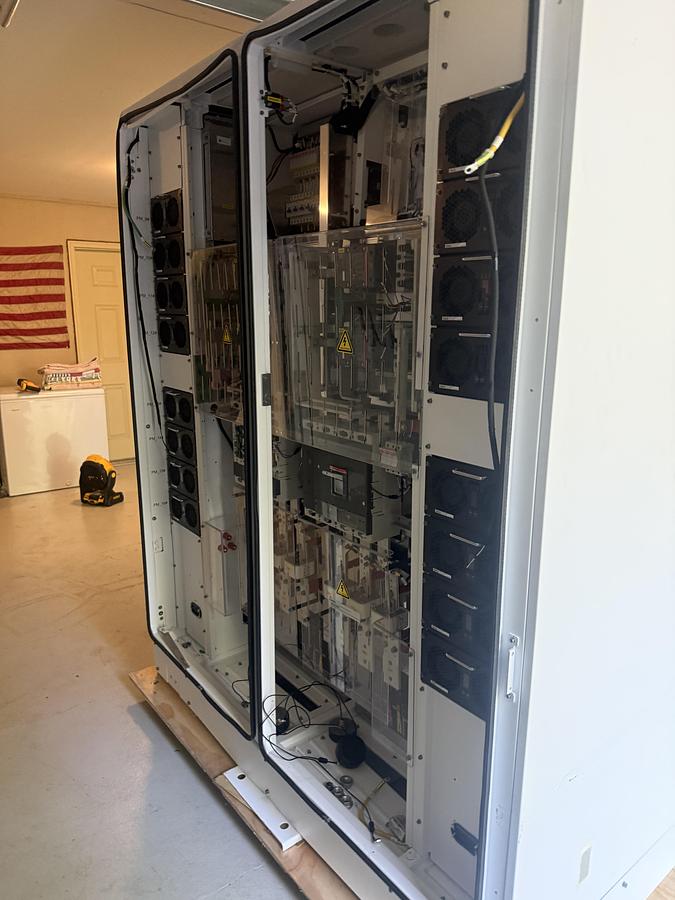

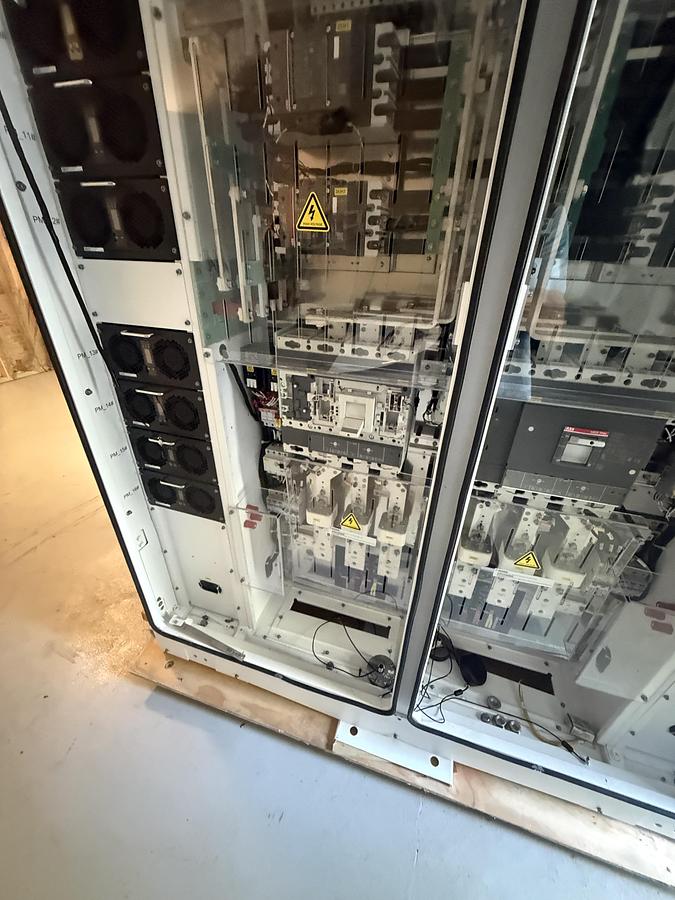

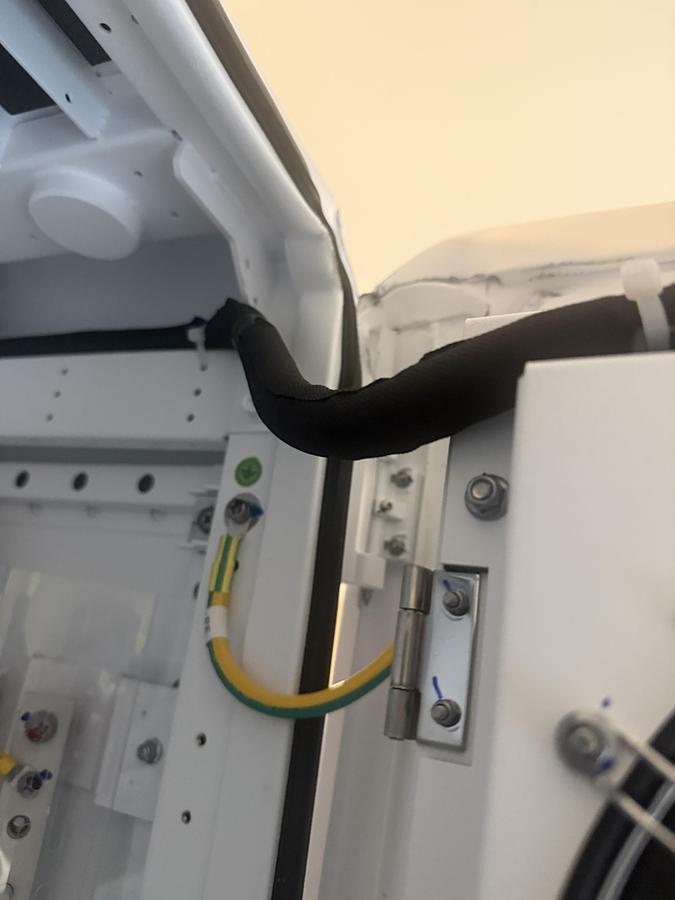

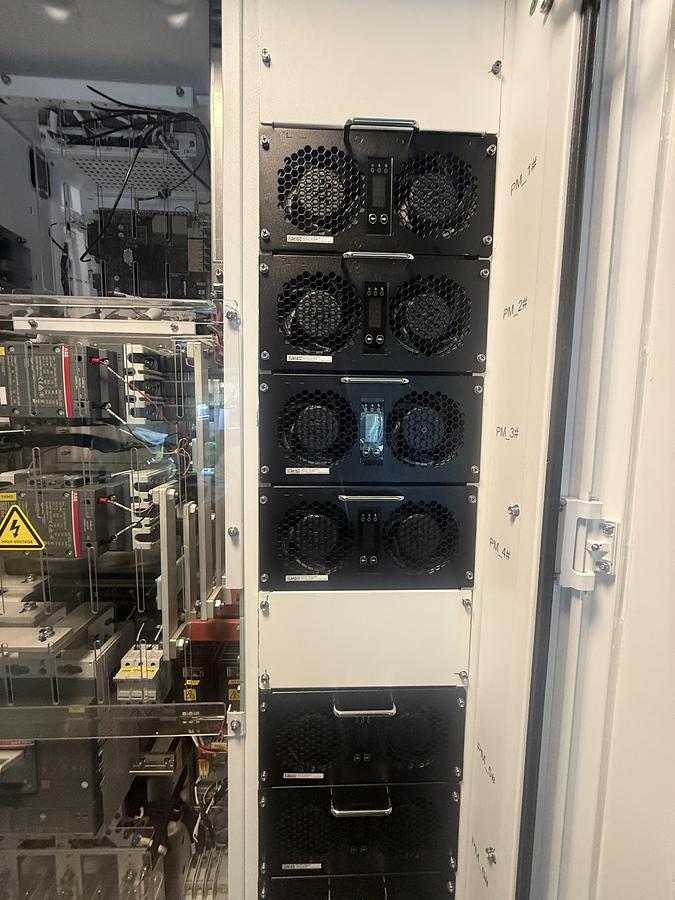

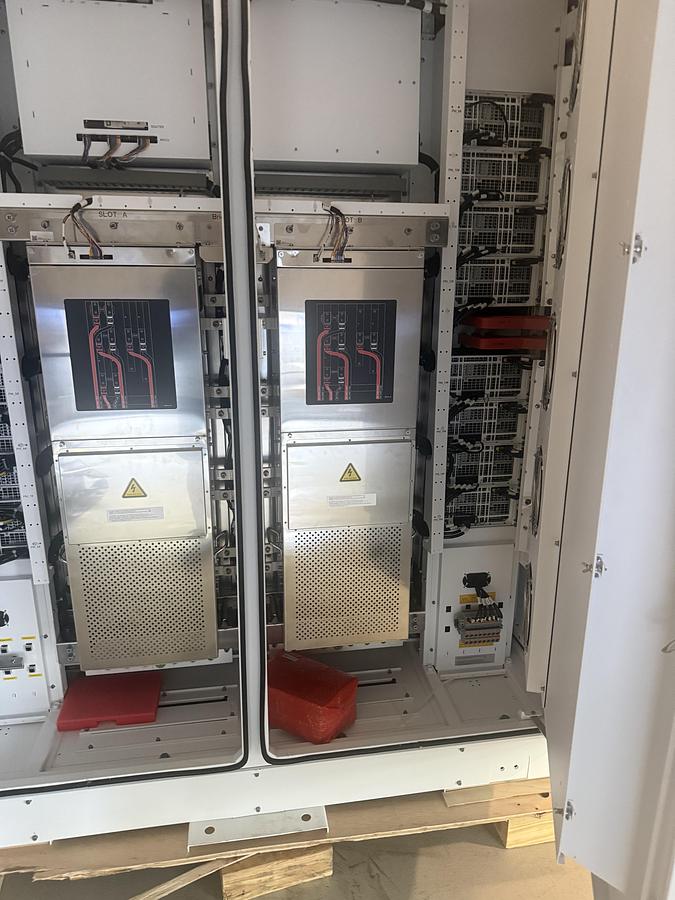

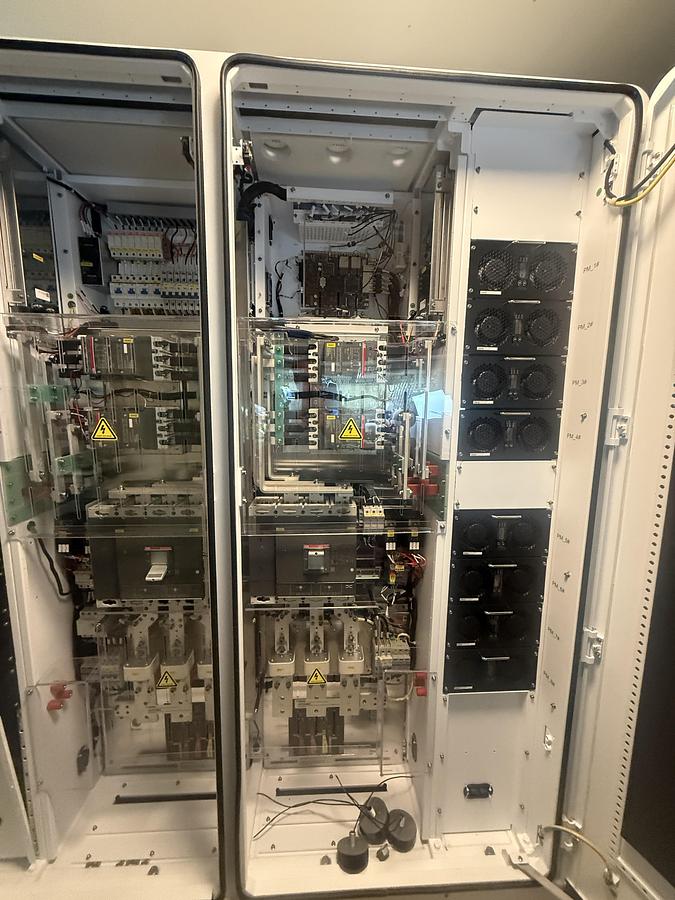

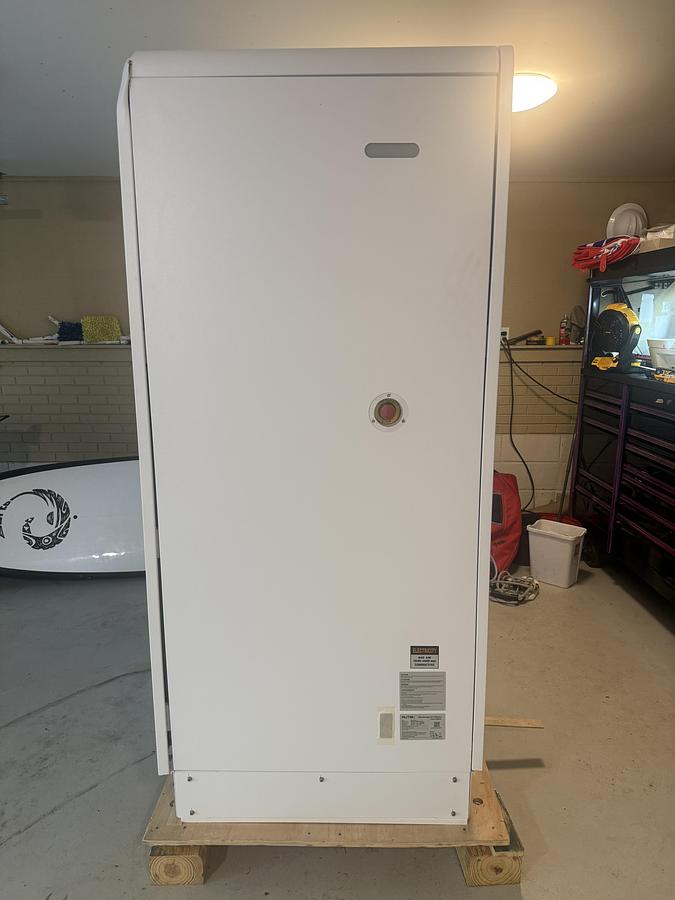

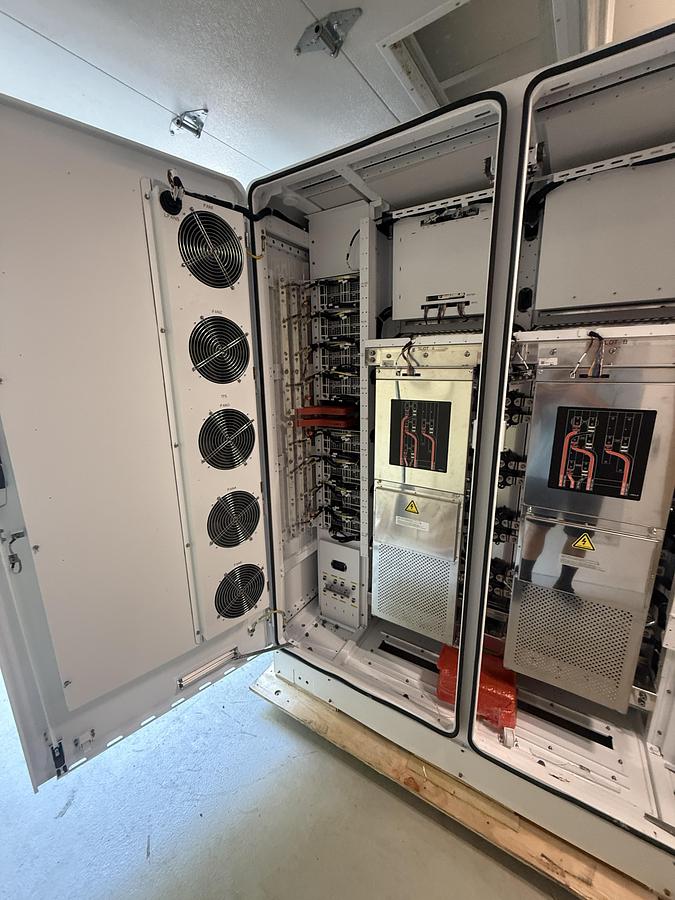

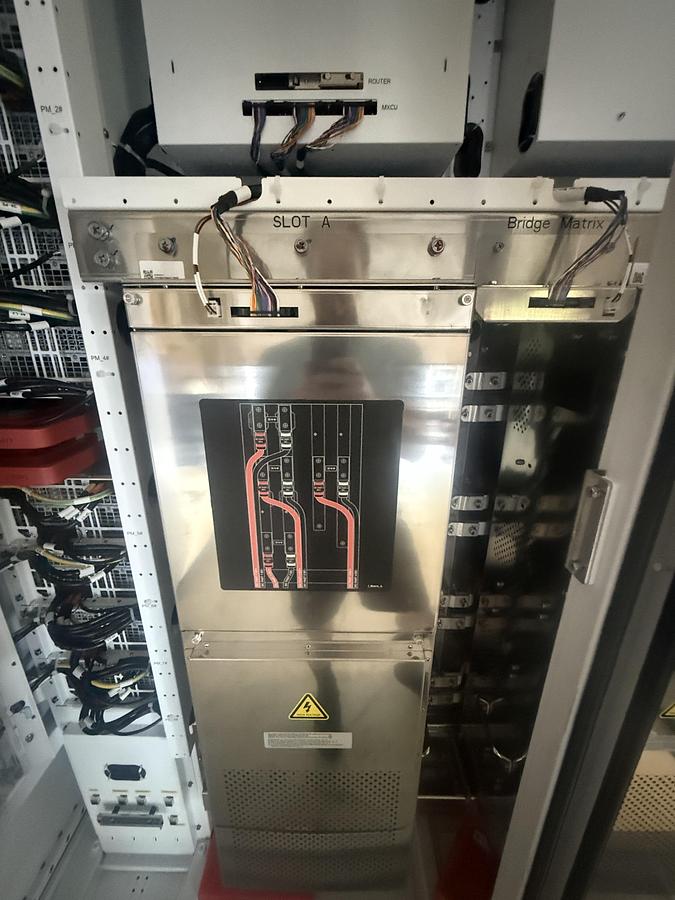

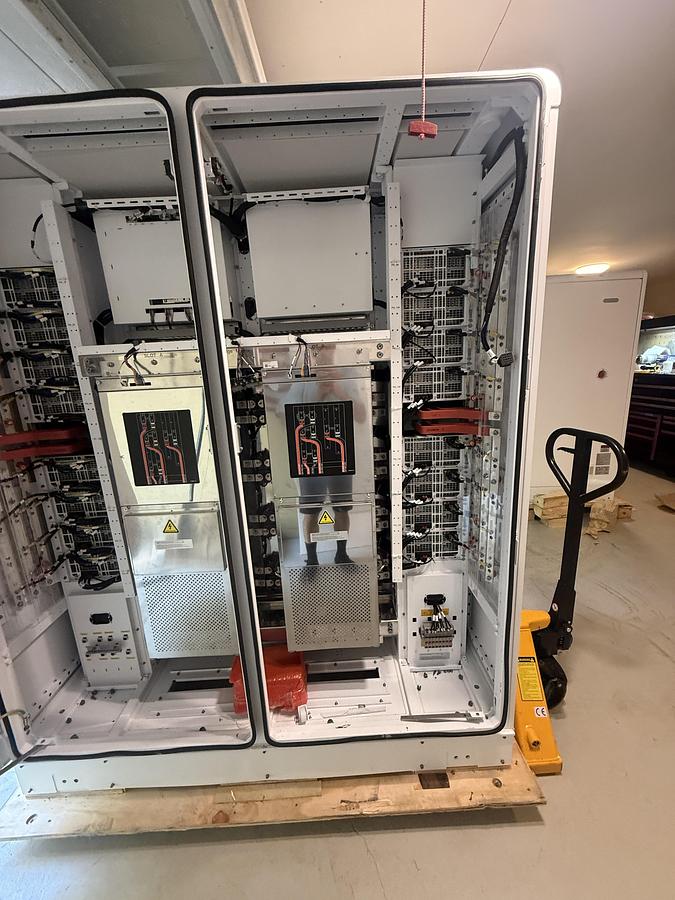

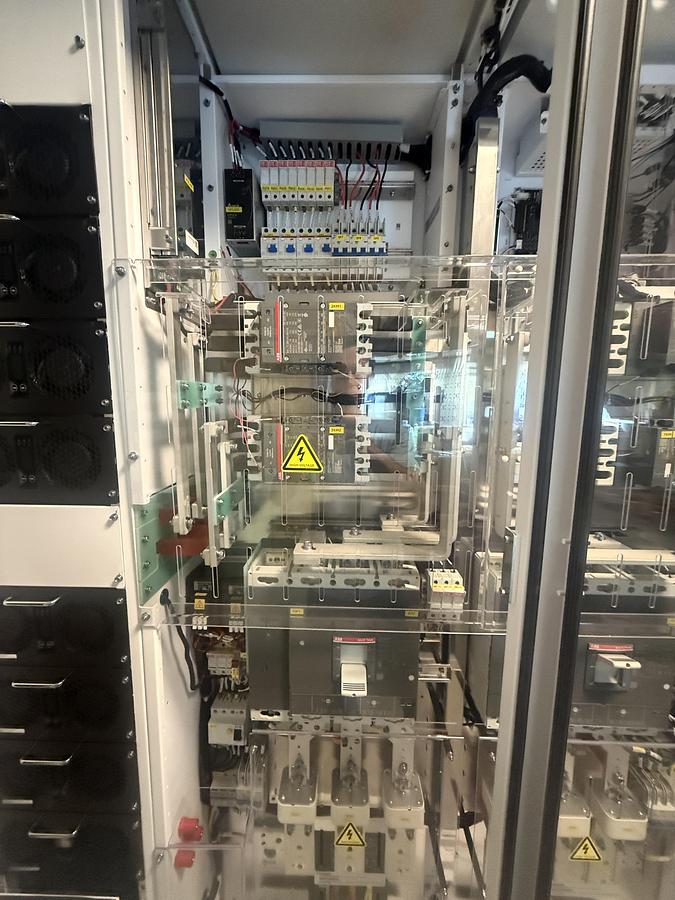

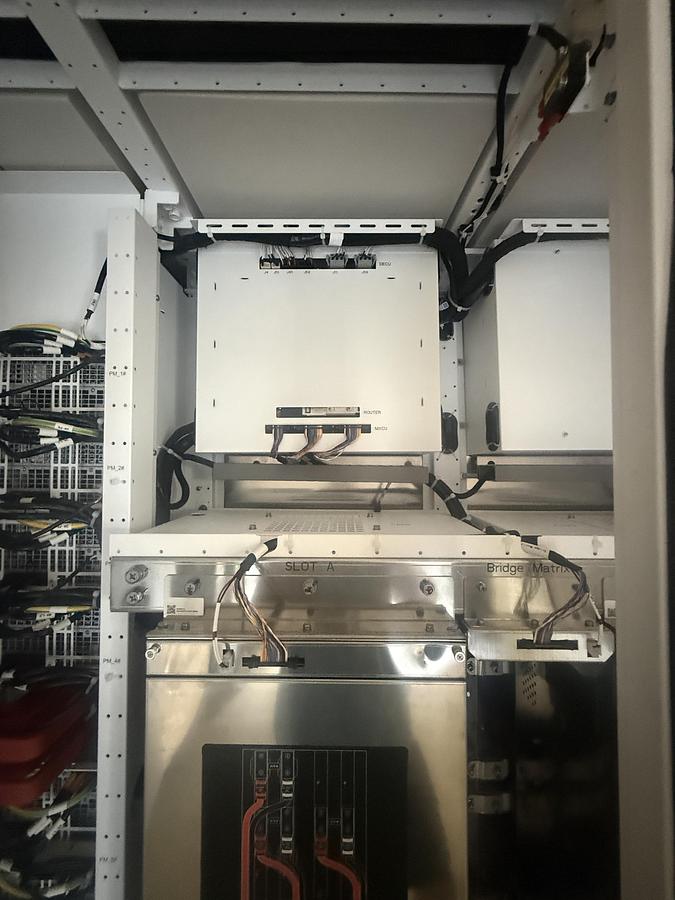

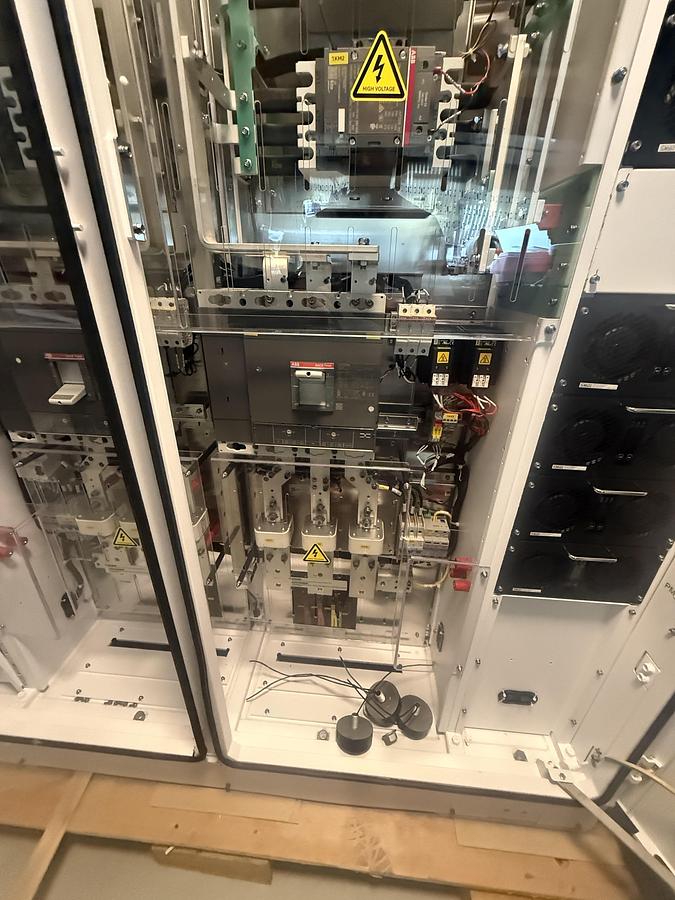

2025 Autel Maxi Charger DC HiPower Cabinet DS640

AC Input480kW (Air Cooling)640kW (Air Cooling)

Earthing System3P, PE (No neutral)3P, PE (No neutral)

Input Voltage3-phase 480V AC ±15% (2 Routes)3-phase 480V AC ±15% (2 Routes)I

nput Frequency60Hz60Hz

Power Factor≥0.99≥0.99

Harmonic distortion（THDi）≤5%≤5%General Characteristics480kW (Air Cooling)640kW (Air Cooling)

Max. Number of Outputs88

Minimum Adjustable Power40kW80kW

Connectivity4G, Wi-Fi, Ethernet4G, Wi-Fi, Ethernet

Peak Efficiency≥96%≥96%

Enclosure RatingNEMA 3SNEMA 3S

Noise Level (Within 10 Feet)Average: < 64 dB Peak: < 67 dBAverage: < 65 dB Peak: < 68 dB

Operating Altitude6561.68 feet (2000 m)6561.68 feet (2000 m)

Operating Temperature Range-31℉ ~ +131℉ (-35℃ ~ +55℃)-31℉ ~ +131℉ (-35℃ ~ +55℃)Storage Temperature Range-40℉ ~ +158℉ (-40℃ ~ +70℃)-40℉ ~ +158℉ (-40℃ ~ +70℃)

MountingFloor StandingFloor Standing

Net WeightApprox. 3197 lbs. (1450 kg)Approx. 3197 lbs. (1450 kg)

Dimensions（H×W×D）78.7” x 66.9” x 35.4” (2000×1700×900 mm)78.7” x 66.9” x 35.4” (2000×1700×900 mm)Certification & Standards480kW (Air Cooling)640kW (Air Cooling)

Safety StandardsUL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16UL 2202, UL 2231-1, UL 2231-2, NEC Article 625, CSA C22.2 No. 107.1-16

CertificationCSA, FCC part 15 Class ACSA, FCC part 15 Class A

Design Life10 years10 years
