2023 ET Solar ET-M772BH540TW

2023 ET Solar ET-M772BH540TW

$175 (USD)

Santa Paula, CA

orCall 805-766-5733

Description

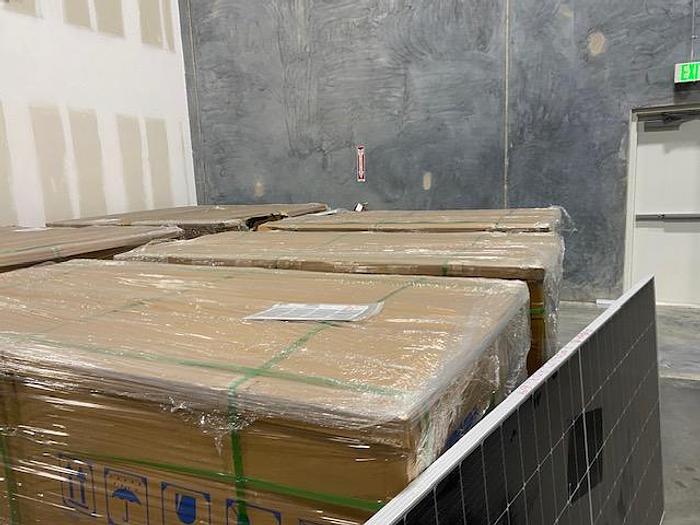

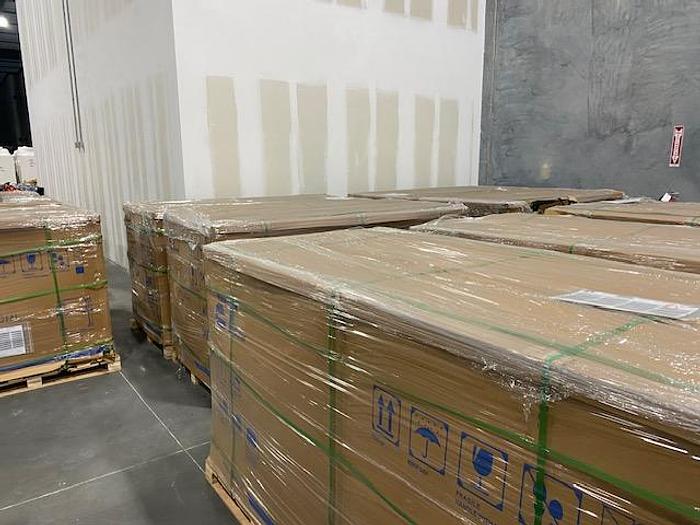

Over 600 In stock. New unused ET Solar 540 Watt Solar Panels. Specs below.


ETECTRICAL SPECIFICATIONS

Module Type

ET-M772BH530TW ET-M772BH535TW ET-M772BH540TW ET-M772BH545TW ET-M772BH550TW ET-M772BH530TB ET-M772BH535TB ET-M772BH540TB ET-M772BH545TB ET-M772BH550TB

STC/NOCT STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT

Maximum Power -Pmp (W) 530 398 535 401 540 405 545 409 550 413

Open Circuit Voltage -Voc (V) 49.30 46.20 49.45 46.24 49.60 46.28 49.75 46.32 49.90 46.36

Short Circuit Current -Isc (A)

13.72 11.29 13.79 11.38 13.86 11.46 13.93 11.54 14.00 11.62

Maximum Power Voltage -Vmp (V)

41.31 37.18 41.47 37.24 41.64 37.30 41.80 37.36 41.96 37.42

Maximum Power Current -Imp (A)

12.83 10.69 12.91 10.77 12.97 10.86 13.04 10.94 13.11 11.03

Module Efficiency STC-η m (%) 20.5% 20.7% 20.9% 21.1% 21.3%

Power Tolerance (W)

(0,+4.99)

Pmax Temperature Coefficient

-0.339%/°C

Voc Temperature Coefficient

-0.251%/°C

Isc Temperature Coefficient

+0.046%/°C

Fire Performance Class C(IEC)/Type 1(UL)

STC: lrradiance 1000 W/m 2 module temperature 25°C AM=1.5

REAR SIDE POWER GAIN (ET-M772BH535TW)

Power Gain 10% 15% 20% 25%

Maximum Power -P mp (W) 589 615 642 669

Open Circuit Voltage -Voc (V) 49.06 49.06 49.06 49.06

Short Circuit Current -Isc (A) 15.13 15.81 16.50 17.19

Maximum Power Voltage -Vmp (V) 42.67 42.67 42.67 42.67

Maximum Power Current -Imp (A) 13.79 14.42 15.05 15.68

MECHANICAL SPECIFICATIONS

External Dimension 2279 x 1134 x 35mm

APPLICATION CONDITIONS

Maximum System Voltage 1500VDC

Weight 28kg

Solar Cells PERC Mono crystalline 182 x 91 mm (144pcs)

Maximum Series Fuse Rating 30A

Operating Temperature -40~+85 °C

Front Glass 3.2mm AR coating tempered glass

Frame Anodized aluminium alloy

Nominal Operating Cell Temperature 45±2 °C

Mechanical Load 5400Pa/2400Pa

Junction Box IP68, 3 diodes

Cable Length 2

(Including Connector)

4.0 mm(12AWG), Portrait:200mm(+)/400mm(-);Or customized

PACKING MANNER

Container 40’HQ

Connector

MC4 Compatible

Power Bifaciality* 70%±10%

Pieces per Pallet 31

Pallets per Container 20

Pieces per Container 620

CURVE

Current-Voltage Curve (530W)

14

12

10

8

6

4

2

0

550 500 450 400 350 300 250 200 150 100 50

00 10 20 30 40 50

  0 10 20 30 40 50

Power-Voltage Curve (530W)



PHYSICAL CHARACTERISTICS Unit:mm

35(1.38)

     A

Lable

1084(42.67)

Ø4

Grounding holes 4places

9x14

Mounting holes 8places

7x10

Mounting holes 4places for

A

9

7

15

B-B

A-A

Units:mm(inch) Tolerance: Length:±2mm Width:±2mm Heigth:±1mm Hole:±1mm

  * The above drawing is a graphical representation of the product. For engineering quality drawings please contact ET Solar.

Specifications

ManufacturerET Solar
ModelET-M772BH540TW
Year2023
ConditionNew
