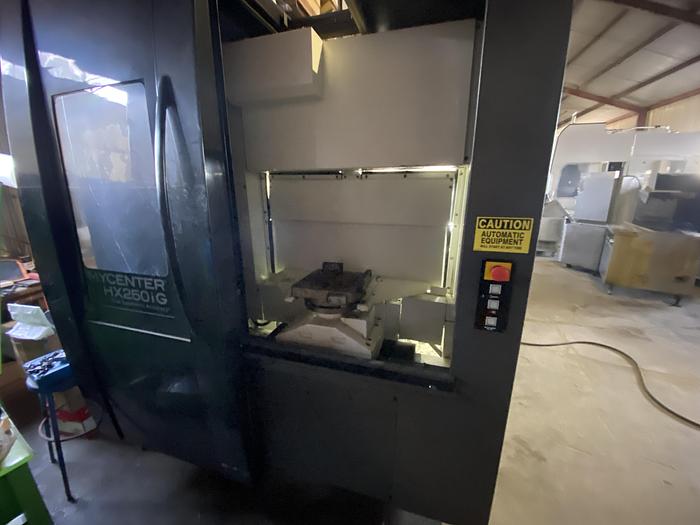

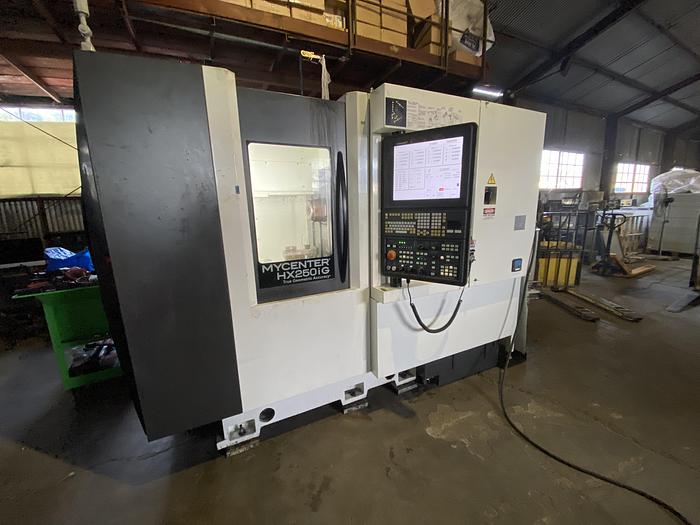

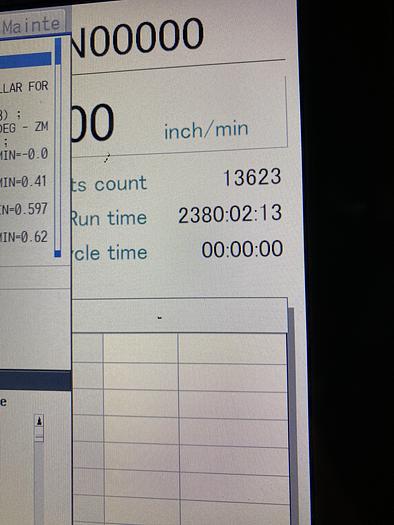

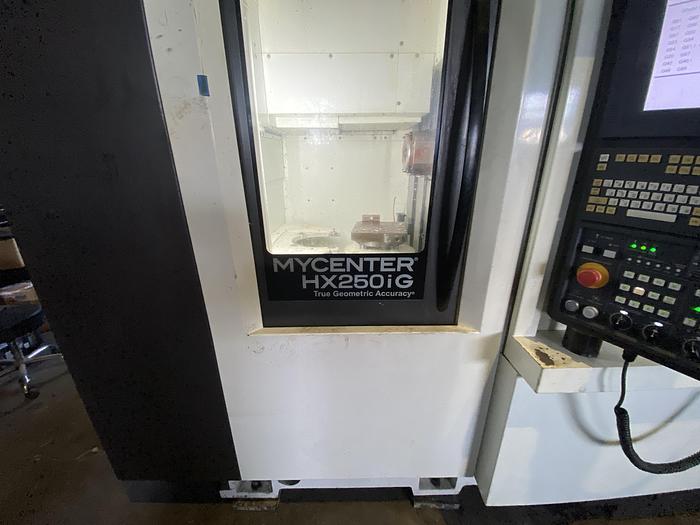

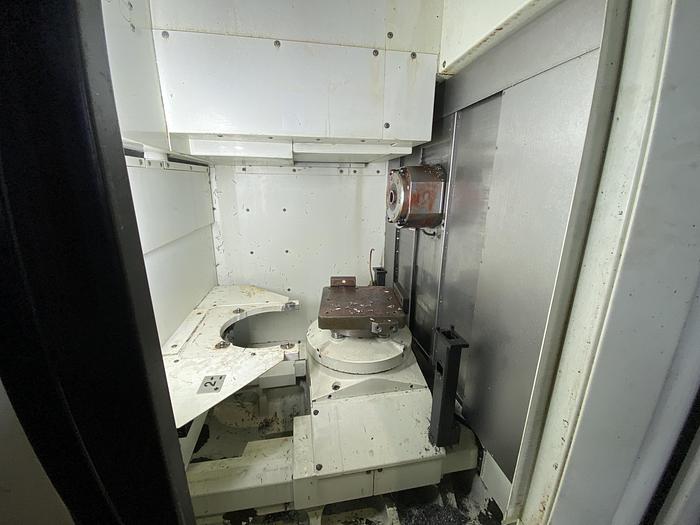

Kitamura HX250iG HMC 2800 Hours

Table Size:10” x 10” (254 x 254mm)

Travel (X, Y, Z):12” x 12” x 13” (305 x 305 x 330mm)

Spindle Taper:NST No. 30 Spindle Speed:30,000   T

ool Storage Capacity:40 Pcs

Tool Change Time (T-T/C-C): 1.2 Sec. /2.8 Sec.

Rapid Feed (X,Y,Z)

Rapid Feed (B)2,362ipm (60m/min)108,000deg./min. (300rpm)

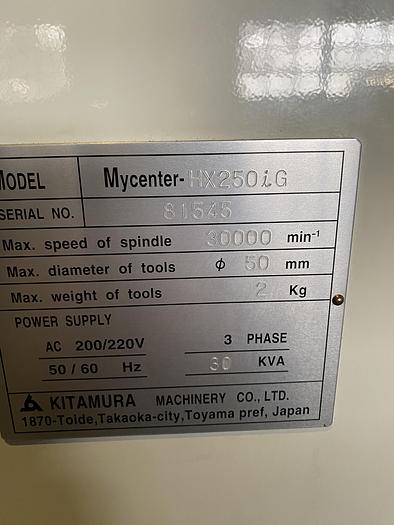

Power Requirement:30KVA

Features

• Drastically reduces set-up times for small, detailed, highly accurate complex parts

• Amazingly small footprint saves on valuable floor space

• Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”

• Ultra high speed rapid feed rates of 2,362ipm

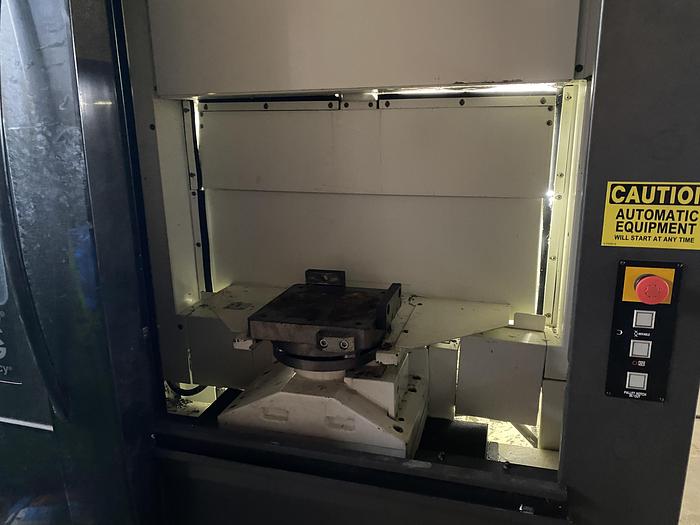

• 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids

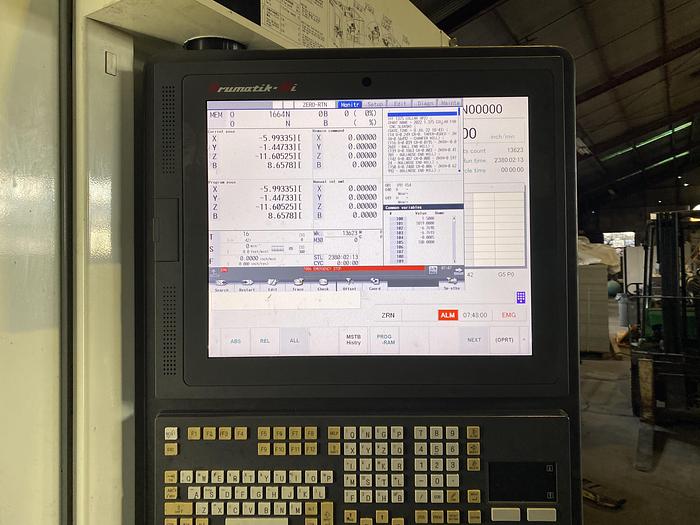

• High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology

 30,000rpm HSK-E40 spindle
